BS, Dividing / Indexing Head

The universal indexing head or universal dividing head is used to perform the following operations :

To set the workpiece in the desired position, in relation to the machine table. To rotate the workpiece through the desired angle, after each cut and hence, index the periphery of the workpiece.

Main Features:

1. Dividing Head can divide in any angle by the direct, indirect, or different methods. The ratio between the warm and the warm gear is 40: 1. Indirect indexing of all numbers from 2 to 50 and many numbers up to 380 possible
2. Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also.
3. The swivel head can be locked of any angle from 10 deg below horizontal to 90 deg vertical-precision fittings to base assures smooth rotation.
4. All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2, 3, 4, 6, 8, 12 and 24.
5. Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation.

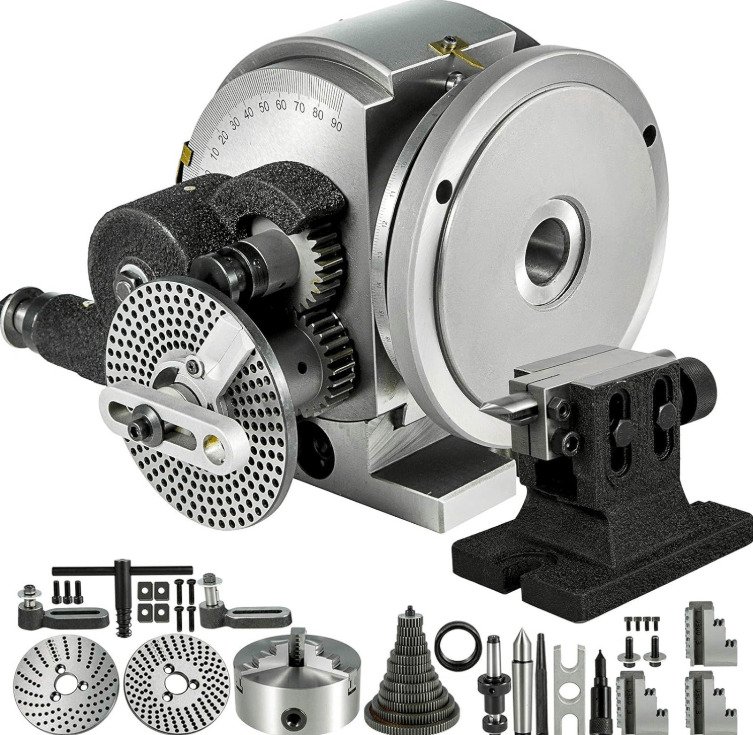

Model No.: BS-0, BS-1, BS-2A, Semi-Universal Dividing Head

Model No.: BS-2, Universal Dividing Head

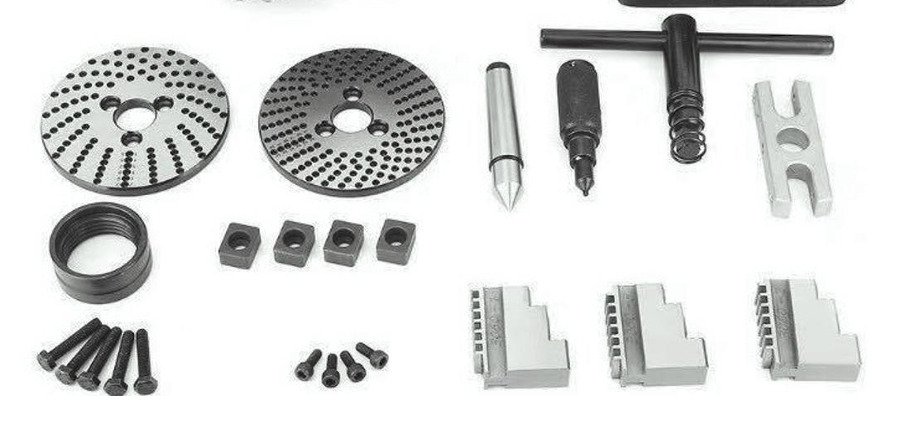

Standard Accessories: Headstock, Tailstock, Dividing Plates, Center & Driving Dog, Threaded Back Plate

Optional Accessories: 3-Jaw Self-Centering Chuck
