Tilting Rotary Table

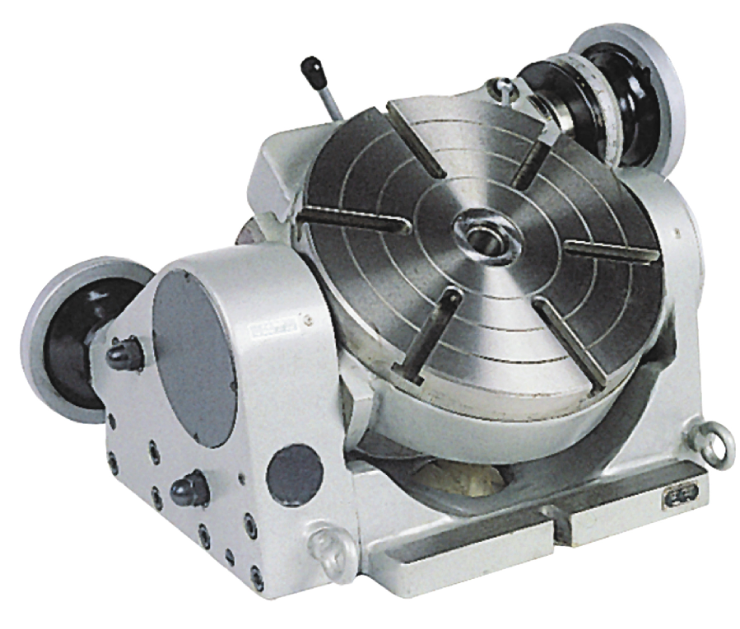

Model No. VUT-6, 10, 12: Tilting Rotary Table

Description:

The Tilting, Multiple, Universal  Rotary Table is used to perform the following operations : To set the workpiece in the desired position, in relation to the machine table. Accurate and built for use in Milling, Boring and other machine. Indexing, Facing and other Operations can be done rapidly with extreme precision with the use of optional dividing plates.

Main Features: Low profile, low center height; Tilting by rigid & strong design, 2 supporter & rigid clamping system construction; Minimum set-up time; Tilting angle can be adjusted by worm & worm gear system; Worm shafts are hardened & ground.

Optional Accessories – Chuck: VUT-6: VSC-5A; VUT-10: VSC-7A, 8A; VUT-12: VSC-7A, 8A

Model No. VUT-250, 300: Multiple Tilting Rotary Table

Description & Main Features: As above and: For the long bar & other work piece need BIGGER BORE size. It is for multiple purpose, Fast dividing function : 15 deg division by handle X 24/360 deg.

Big Center Hole Design TYPE 250 is DIA 45mm,

Big Center Hole Design TYPE 300 is DIA 65mm

with 15 Deg, 24 Division direct index, Heavy Duty Type, Rigid & Strong Design.

Model No. VU-100, 150, 200: Universal Tilting Rotary Table
